Micro-CT for Dentistry

Micro-CT Scanning
Raises the Bar on
Digital Dentistry.

The chris x1 delivers sub-micron resolution scanning for models, impressions, and restorations — giving dentists unprecedented detail for diagnosis, treatment planning, and quality control.

<2 µm
Resolution (10% MTF)
0.5 µm
NanoCT Capability
3400×
Detector Elements

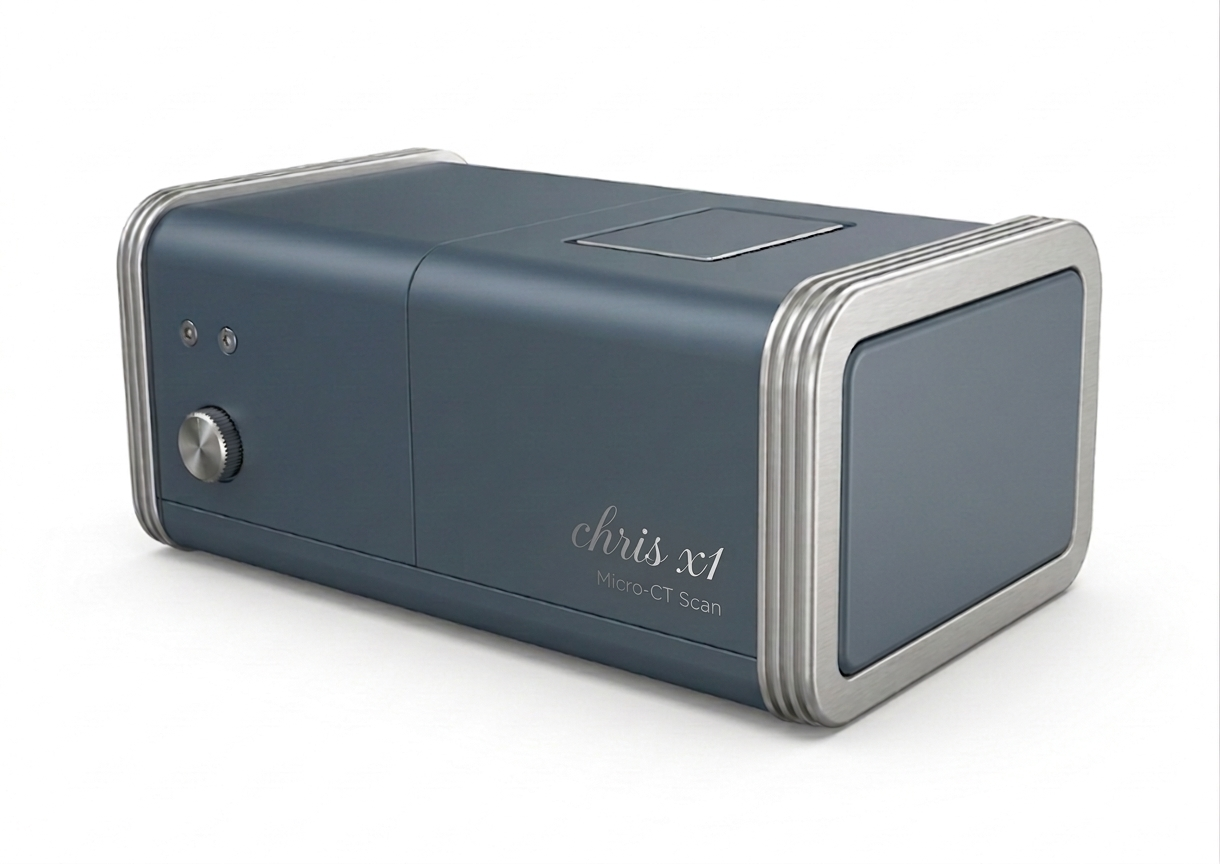

AI Dent Tech chris x1 Micro-CT Scanner
Clinical Applications
What Dentists Use It For
The chris x1 handles the full range of digital dentistry scanning workflows — with sub-micron precision that goes far beyond conventional imaging.
01
Dental Model Scanning
Digitize plaster and resin models with <2µm resolution. Capture every margin, cusp, and contact point for accurate crown and bridge fabrication.
02
Impression Scanning
Scan physical impressions to produce high-fidelity digital replicas. Verify dimensional accuracy before sending to the lab or milling unit.
03
Restoration QC
Inspect crowns, veneers, bridges, and inlays before seating. Detect surface defects, internal porosity, and marginal gaps non-destructively.
04
Material Research
Evaluate composite, ceramic, and zirconia microstructure. Support in-practice R&D and post-treatment failure analysis.
05
Digital Documentation
Archive patient models and restorations as high-resolution 3D datasets. Build a searchable, reproducible digital record for every case.
Why chris x1
Engineered for Dental Precision
Every specification is optimized for the demands of modern dental practice — from chairside to laboratory.
Sub-Micron Resolution
Achieves <2µm (10% MTF) with 0.5µm nanoCT capability — the sharpest detail available in any cabinet micro-CT system for dental use.
<2 µm Resolution
High-Res Flat Panel Detector
3400 × 1200 element detector with 20µm pitch captures the full sample in a single rotation — no stitching, no artifacts.
3400×1200 Detector Elements
Fully Shielded Cabinet
Self-contained cone-beam micro-CT enclosure. No additional room shielding, special installation, or radiation barriers required.
0 extra Shielding Needed
Sealed, Maintenance-Free Tube
Air-cooled sealed X-ray source with 5–30µm spot size. 20–100 kVp variable voltage with four calibrated presets (45, 55, 70, 90 kVp).
5–30 µm Spot Size
Isotropic Voxel Accuracy
0.5µm to 100µm nominal isotropic pixel size ensures dimensional measurements match physical reality at every scale.
0.5–100 µm Pixel Size Range
DICOM & Open Format Export
Export as DICOM, STL, or raw TIFF stacks. Compatible with all major dental CAD/CAM and analysis platforms.
DICOM Native Export
Technical Specifications
chris x1 — Full Spec Sheet
Cabinet cone-beam microCT · Fully shielded · No external shielding required
<2 µm
Resolution (10% MTF)
Best-in-class micro-CT detail
0.5 µm
NanoCT Pixel Size
Ultra-high magnification mode
20–100
kVp Operating Range
4 calibrated presets
System
Cabinet Cone-Beam
Micro-CT Type
System
Fully Shielded
Radiation Safety
System
No Room Shielding
Installation Requirement
X-Ray Source
Sealed, Air-Cooled
Source Type
X-Ray Source
Maintenance-Free
Upkeep
X-Ray Source
5–30 µm
Spot Size
X-Ray Source
4–18 W
Power Range
X-Ray Source
20–100 kVp
Voltage Range
X-Ray Source
45/55/70/90 kVp
Calibrated Presets
Detector
3400×1200
Detector Elements
Detector
20 µm pitch
Element Pitch
Resolution
<2 µm
10% MTF Resolution
Resolution
0.5 µm
NanoCT Pixel Size
Resolution
100 µm
Max Nominal Isotropic
Resolution
Isotropic
Voxel Geometry
Contact & Demo
See the chris x1 in Action

Book a live demonstration with our clinical imaging team. We'll walk you through a full scan workflow on your sample type — models, impressions, or restorations.

What to Expect

  • Live scan on a dental model or impression
  • 3D reconstruction walkthrough in real time
  • Integration with your CAD/CAM or lab software
  • Installation requirements review (no room shielding needed)
  • Financing and trade-in options overview
